Fiber Optic Cable
Product Name/Code : All  Dielectric Self-supporting(ADSS)Cable

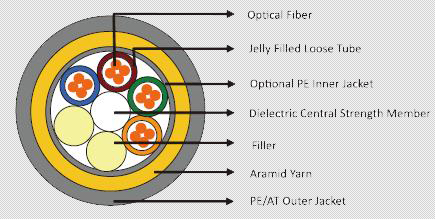

Construction

 All Dielectric Self-supporting(ADSS)Cable  Physical Properties

Span(m)

Ice+Wind:0mm+35m/sec

Ice+Wind:12mm+30m/sec

Cable O.D.(mm/in)

Cable Weight(kg/km)/(lb/kft)

Max.Working Tension(N/lb)

Max
.Sag(%)

Cable O.D.(mm/in)

Cable Weight(kg/km)/(lb/kft)

Max.Working Tension(N/lb)

Max
.Sag(%)

100

13.9/5.472

152/102.01

7578/1704

2

13.8/0.543

150.0/100.67

6621/1489

2

200

14.3/0.562

161/108.05

10430/2346

3

14.1/0.555

157.0/105.37

9000/2024

3

400

15.9/0.625

199/133.56

23221/5223

3

15.4/0.606

187.0/125.50

19225/4331

3

500

16.7/0.657

220/147.65

30590/6881

3

16.1/0.633

204.0/136.91

24885/5598

3

600

16.3/0.641

209/140.27

26952/6063

4

15.7/0.618

196.0/131.54

22154/4983

4

800

16.5/0.649

216/144.97

29452/6625

5

15.9/0.625

201.0/134.90

24042/5408

6

1000

16.7/0.657

221/148.32

31271/7034

6

16.1/0.633

204.0/136.91

24407/5490

6

* Above table do not cover all of available types. Other ADSS cables can be manufactured upon customer's request according to different span and sag environment.

  Mechanical Properties

Minimum Bending Radius:   Maximum Compressive Load: 4000N
Under installation: 20×OD Repeated Impact: 4.4 N.m (J)
During operation 10×OD for unarmoured cables Twist (Torsion): 180×10 times, 125×OD
  20×OD for armoured cables Cyclic Flexing: 100 cycles
Temperature Range:
Operating Temperature Range: -40℃(-40℉) to +70℃(+158℉) Crush Resistance: 263N/cm (1250lb/in)
Storage Temperature Range: -50℃(-58℉) to +70℃(+158℉)

   Fiber Compliance

Temperature Cycling
Tensile Strength
Crush
Impact
Repeated Bending
Torsion
Kink
Cable Bend
Cool Bend

IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11

  Standard Compliance

      Telcordia GR-20         RUS 7 CFR 1755.900 (REA PE-90)         ICEA S 87-640            IEEE1222

   Features

• High capacity cable offer great flexibility for placement on overhead transmission towers, eliminating the need for a support messenger.
• Dry core design and high tension strength capability suitable for toughest environmental and electrical conditions.
• Fit for extra high voltage power lines without interruption of power service to the customers.
• Typical spans with 1%-1.5% installation sag environment.
