 Fiber Optic Cable
|
|
Product Name/Code : Central Loose Tube Ribbon Fiber Cable
|

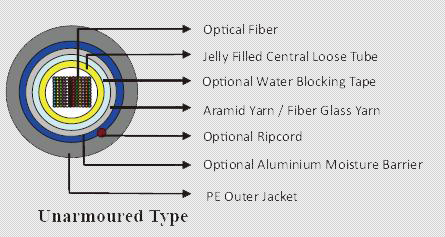

Construction
Physical Properties
Fiber Count |
Nominal Weight(kg/km) |
Nominal Weight(lb/kft) |
Nominal Outer Diameter(mm) |
Nominal Outer Diameter(in) |
Maximum Pulling Load |
Installation(N/Ib) |
In Service(N/Ib) |
12-96 |
166.0 |
111.41 |
16.2 |
0.637 |
2670/600 |
890/200 |
108-144 |
208.0 |
139.60 |
18.5 |
0.727 |
2670/600 |
890/200 |
156-216 |
244.0 |
163.76 |
20.5 |
0.806 |
2670/600 |
890/200 |

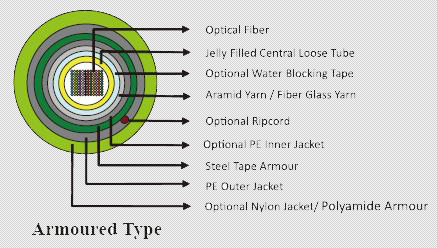

Construction
Physical Properties
Fiber Count |
Nominal Weight(kg/km) |
Nominal Weight(lb/kft) |
Nominal Outer Diameter(mm) |
Maximum Pulling Load |
Installation(N/Ib) |
In Service(N/Ib) |
12-96 |
233.0 |
156.38 |
14.8 |
2670/600 |
890/200 |
108-144 |
276.0 |
185.23 |
16.1 |
2670/600 |
890/200 |
156-216 |
316.0 |
212.08 |
17.1 |
2670/600 |
890/200 |
Mechanical Properties
| Minimum Bending Radius: |
|
Maximum Compressive Load: |
3000N |
| Under installation: |
20×OD |
Repeated Impact: |
4.4 N.m (J) |
| During operation |
10×OD for unarmoured cables |
Twist (Torsion): |
180×10 times, 125×OD |
| |
20×OD for armoured cables |
Cyclic Flexing: |
25 cycles for armoured cables. |
| Temperature Range: |
|
|
100 cycles for unarmoured cables. |
| Operating Temperature Range: |
-40℃(-40℉) to +70℃(+158℉) |
Crush Resistance: |
263N/cm (150lb/in) |
| Storage Temperature Range: |
-50℃(-58℉) to +70℃(+158℉) |
|
|
Fiber Compliance
|
|
Temperature Cycling
Tensile Strength
Crush
Impact
Repeated Bending
Torsion
Kink
Cable Bend
Cool Bend |
IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11 |
Safety Compliance
General Purpose Grade |
Flammability Test: OFN (UL1581) |
Riser Grade |
Flammability Test: OFNR/FT4 (UL1666) |
Plenum Grade |
Flammability Test: OFNP/FT6 (UL 910) |
FRPVC Grade |
Flammability Test: IEC60332-1 |
LSZH Grade |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2 |
LSFROH Grade |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A |
FR Grade |
Fire Resistance Test : IEC 60331 / BS 6387 CWZ |
Standard Compliance
Telcordia GR-20 RUS 7 CFR 1755.900 (REA PE-90) ICEA S 87-640
Features
• Large fiber counts with small cable diameter
• Highly adaptable to mass splicing
• Suitable for installation in pipeline
• High quality jelly filled loose tube provides the ribbon fiber satisfactory mechanical and environmental protection.
• Ripcord allows easy jacket removal
• UV or moisture resistant for outdoor application
• Dry water blocking core design for ease of handling |
| |
|
|
|
|
|
| |
|
|
