Fiber Optic Cable
Product Name/Code : Fig8 Self-supporting cable

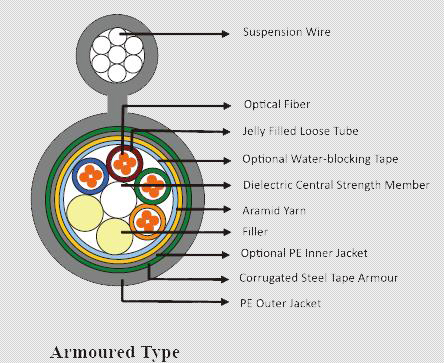

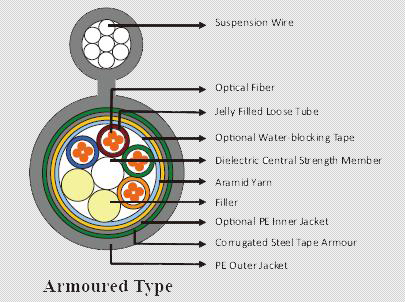

Construction

Fig8 Self-supporting cable

   Physical Properties

Fiber Count

Nominal Weight(kg/km)

Nominal Weight(lb/kft)

Nominal Outer Diameter(mm)

Nominal Outer Diameter(in)

Maximum Pulling Load

Installation(N/Ib)

In Service(N/Ib)

2-24

389.0

261.07

12.6*25.1

0.50*0.99

2670/600

890/200

36-72

429.0

287.92

14.7*27.1

0.58*1.07

2670/600

890/200

96-144

571.0

383.22

20.2*32.6

0.80*1.29

2670/600

890/200

2-24

303.0

203.36

9.1*21.5

0.36*0.85

2670/600

890/200

36-72

332.0

222.82

11.1*23.5

0.44*0.93

2670/600

890/200

96-144

417.0

279.87

15.9*28.3

0.63*1.12

2670/600

890/200

 Construction

Fig8 Self-supporting cable

   Physical Properties

Fiber Count

Nominal Weight(kg/km)

Nominal Weight(lb/kft)

Nominal Outer Diameter(mm)

Nominal Outer Diameter(in)

Maximum Pulling Load

Installation(N/Ib)

In Service(N/Ib)

2-24

389.0

261.07

12.6*25.1

0.50*0.99

2670/600

890/200

36-72

429.0

287.92

14.7*27.1

0.58*1.07

2670/600

890/200

96-144

571.0

383.22

20.2*32.6

0.80*1.29

2670/600

890/200

  Mechanical Properties

Minimum Bending Radius:   Maximum Compressive Load: 4000N for unarmored cables;
Under installation: 20×OD   6000N for armoured cables
During operation 0×OD for unarmoured cables Repeated Impact: 4.4 N.m (J)
  20×OD for armoured cables Twist (Torsion): 180×10 times, 125×OD
Temperature Range:   Cyclic Flexing: 25 cycles for armoured cables.
Operating Temperature Range: -40℃(-40℉) to +70℃(+158℉)   100 cycles for unarmoured cables.
Storage Temperature Range: -50℃(-58℉) to +70℃(+158℉) Crush Resistance: 220N/cm (125lb/in)

   Fiber Compliance

Temperature Cycling
Tensile Strength
Crush
Impact
Repeated Bending
Torsion
Kink
Cable Bend
Cool Bend

IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11

   Safety Compliance

General Purpose Grade

Flammability Test: OFN (UL1581)

Riser Grade

Flammability Test: OFNR/FT4 (UL1666)

Plenum Grade

Flammability Test: OFNP/FT6 (UL 910)

FRPVC Grade

Flammability Test: IEC60332-1

LSZH Grade

Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2

LSFROH Grade

Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A

FR Grade

Fire Resistance Test : IEC 60331 / BS 6387 CWZ

  Standard Compliance

      Telcordia GR-20          RUS 7 CFR 1755.900 (REA PE-90)           ICEA S 87-640

   Features

• Suitable for self supporting aerial, duct and direct burial installation
• Tear away messenger simplifies grounding
• Ripcord allows easy cable entry and jacket removal
l• Compatible with existing Fig 8 hardware
• Flexible buffer tube simplifies routing and splicing.
• Loose tube jelly filled for superior fisber protection
• UV or moisture resistant for outdoor application
