Fiber Optic Cable
Product Name/Code : Multi Loose Tube Cable

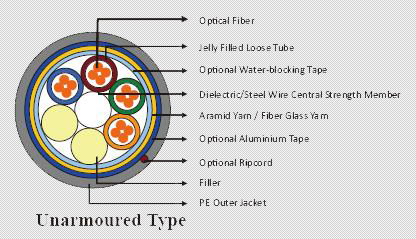

 Construction

Multi Loose Tube Cable

   Physical Properties

Fiber Count

Nominal Weight(kg/km)

Nominal Weight(lb/kft)

Nominal Outer Diameter(mm)

Nominal Outer Diameter(in)

Maximum Pulling Load

Installation(N/Ib)

In Service(N/Ib)

2-36

110.0

73.83

120.

0.472

2670/600

800/180

38-72

120.0

80.54

12.6

0.496

2670/600

800/180

74-84

135.0

90.60

13.5

0.531

2670/600

800/180

76-96

150.0

100.67

14.0

0.551

2670/600

800/180

98-108

170.0

114.09

15.0

0.590

2670/600

800/180

110-120

190.0

127.52

15.5

0.610

2670/600

800/180

122-132

210.0

140.94

16.5

0.649

2670/600

800/180

134-144

230.0

154.36

17.5

0.688

2670/600

800/180

146-216

250.0

167.79

18.0

0.708

2670/600

800/180

218-264

300.0

201.34

19.5

0.767

2670/600

800/180

266-312

350.0

234.90

21.0

0.826

2670/600

800/180

314-360

400.0

268.46

22.5

0.885

2670/600

800/180

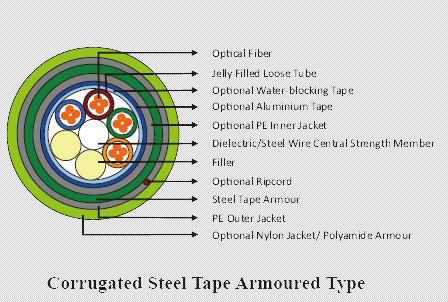

   Construction

Multi Loose Tube Cable

   Physical Propertie

Fiber Count

Nominal Weight(kg/km)

Nominal Weight(lb/kft)

Nominal Outer Diameter(mm)

Nominal Outer Diameter(in)

Maximum Pulling Load

Installation(N/Ib)

In Service(N/Ib)

2-36

210.0

140.94

15.0

0.590

2670/600

800/180

38-72

230.0

154.36

15.5

0.610

2670/600

800/180

74-84

250.0

167.79

16.5

0.649

2670/600

800/180

76-96

270.0

181.21

17.0

0.669

2670/600

800/180

98-108

295.0

197.98

17.5

0.688

2670/600

800/180

110-120

320.0

214.77

18.5

0.728

2670/600

800/180

122-132

355.0

238.26

19.0

0.748

2670/600

800/180

134-144

370.0

248.32

20.0

0.787

2670/600

800/180

146-216

390.0

261.74

21.0

0.826

2670/600

800/180

218-264

455.0

305.35

22.5

0.885

2670/600

800/180

266-312

515.0

345.64

24.0

0.944

2670/600

800/180

314-360

580.0

389.26

26.0

1.023

2670/600

800/180

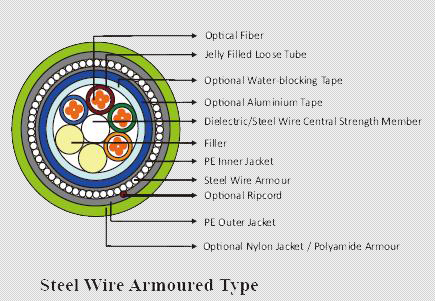

  Construction

Multi Loose Tube Cable

Physical Properties

Fiber Count

Nominal Weight(kg/km)

Nominal Weight(lb/kft)

Nominal Outer Diameter(mm)

Nominal Outer Diameter(in)

Maximum Pulling Load

Installation(N/Ib)

In Service(N/Ib)

2-36

700.0

469.80

21.0

0.826

8000/1800

2650/595

38-72

830.0

557.05

23.5

0.925

8000/1800

2650/595

74-84

870.0

583.89

24.0

0.944

8000/1800

2650/595

76-96

900.0

604.03

24.5

0.964

8000/1800

2650/595

98-108

950.0

637.58

26.0

1.023

8000/1800

2650/595

110-120

1000.0

671.14

27.0

1.062

8000/1800

2650/595

122-132

1050.0

704.70

28.0

1.102

8000/1800

2650/595

134-144

1100.0

738.26

29.0

1.141

8000/1800

2650/595

146-216

1300.0

872.48

31.0

1.220

8000/1800

2650/595

218-264

1400.0

939.60

33.0

1.299

8000/1800

2650/595

266-312

1500.0

1006.71

35.0

1.377

8000/1800

2650/595

314-360

1600.0

1073.83

37.0

1.456

8000/1800

2650/595

   Mechanical Properties

Minimum Bending Radius:   Maximum Compressive Load: 4000N for unarmored cables;
Under installation: 20×OD   6000N for armoured cables
During operation 10×OD for unarmoured cables Repeated Impact: 4.4 N.m (J)
  20×OD for armoured cables Twist (Torsion): 180×10 times, 125×OD
Temperature Range:   Cyclic Flexing: 25 cycles for armoured cables.
Operating Temperature Range: -40℃(-40℉) to +70℃(+158℉)   100 cycles for unarmoured cables.
Storage Temperature Range: -50℃(-58℉) to +70℃(+158℉) Crush Resistance: 220N/cm (125lb/in)

   Fiber Compliance

Temperature Cycling
Tensile Strength
Crush
Impact
Repeated Bending
Torsion
Kink
Cable Bend
Cool Bend

IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11

   Safety Compliance

General Purpose Grade

Flammability Test: OFN (UL1581)

Riser Grade

Flammability Test: OFNR/FT4 (UL1666)

Plenum Grade

Flammability Test: OFNP/FT6 (UL 910)

FRPVC Grade

Flammability Test: IEC60332-1

LSZH Grade

Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2

LSFROH Grade

Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A

FR Grade

Fire Resistance Test : IEC 60331 / BS 6387 CWZ

   Standard Compliance

      Telcordia GR-20          RUS 7 CFR 1755.900 (REA PE-90)                ICEA S 87-640

   Features

• Loose Tube construction provides environmental protection
• Loose tube jelly filled for superior fi ber protection
• Colored coded fibers and binders for quick and easy identification during installation.
• UV resistant for outdoor application
• Dry water blocking core design for ease of handling
• Anti-termite and rodent protection as options
• Optional Aluminium moisture barrier for EMI protection and water protection
