Military Cables
Product Name/Code : MIL-W-22759/1

Application and description:

This PTFE, FEP, and Glass insulated single-core MIL-W-22759/1 wires are used for MIL-Spec and Aerospace, government applications and applications where wire must operate in extremely harsh environments. These wires are abrasion resistant, withstanding vibration and exposure to open flame

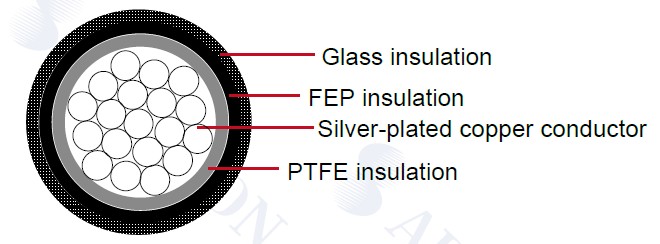

Construction Details:

The first layer is PTFE wrapped tape. The second and third layers are PTFE coated glass braid.

Construction:

Conductor: Stranded silver-plated copper conductor

Insulation: PTFE, FEP, and Glass Insulation

Insulating Material Thickness: 1.4 mm to 3.2mm

Technical Parameters:

Temperature Rating: 200°C
 Voltage Rating: 600 volts

SAE AS22759/1

Color Code: MIL-STD-681

AWG Size

Conductor Stranding

Conductor Diam.

Conductor Diam.

Min O.D.

Max O.D.

Approx LBS/MFT

Min

max





in

mm

in

mm

(in)

Mm

(in)

mm



22

19/34

0.029

0.737

0.032

0.813

0.08

2.032

0.088

2.235

7.5

20

19/32

0.037

0.94

0.04

1.016

0.09

2.286

0.098

2.489

9.5

18

19/30

0.046

1.168

0.05

1.27

0.1

2.54

0.11

2.794

13

16

19/29

0.052

1.321

0.057

1.448

0.115

2.921

0.125

3.175

16.5

14

19/27

0.065

1.651

0.072

1.829

0.133

3.378

0.143

3.632

23

12

37/28

0.084

2.134

0.089

2.261

0.152

3.861

0.162

4.115

32.1

10

37/16

0.406

10.312

0.112

2.845

0.174

4.42

0.188

4.775

47

8

133/29

0.158

4.013

0.169

4.293

0.241

6.121

0.255

6.477

82

6

133/27

0.198

5.029

0.213

5.41

0.283

7.188

0.303

7.696

122

4

133/25

0.25

6.35

0.268

6.807

0.4

10.16

0.43

10.922

180

2

665/30

0.32

8.128

0.34

8.636

0.405

10.287

0.435

11.049

275

1

817/30

0.36

9.144

0.38

9.652

0.455

11.557

0.485

12.319

348

1/0

1045/30

0.395

10.033

0.425

10.795

0.495

12.573

0.535

13.589

429

2/0

1330/30

0.44

11.176

0.475

12.065

0.555

14.097

0.595

15.113

542

3/0

1665/30

0.5

12.7

0.54

13.716

0.62

15.748

0.66

16.764

668

4/0

2109/30

0.565

14.351

0.605

15.367

0.69

17.526

0.73

18.542

835
