Application and description:
This PTFE insulated single-core MIL-W-22759/20 wires are used for MIL-Spec and Aerospace, They are ideal for aerospace and other applications requiring high reliability and break strength, enhanced flex life, and resistance to high temperatures. These wires are especially well-suited in applications where smoke emission, overload stability, and flammability are major concerns.
Construction Details:
PTFE is extruded
Construction：

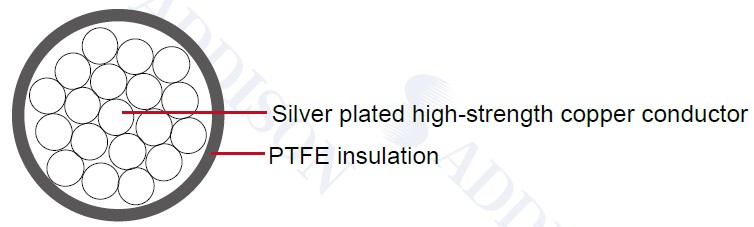

Conductor: Stranded silver plated high-strength copper alloy conductor
Insulation: Extruded PTFE Insulation
Insulating Material Thickness: 0.7 mm
Technical Parameters:
Temperature Rating: 200°C
Voltage Rating: 1000 volts
SAE AS22759/20
Color Code: MIL-STD-681
AWG Size |
Conductor Stranding |
Conductor Diam. |
Conductor Diam. |
Min O.D. |
Max O.D. |
Approx LBS/MFT |
Min |
max |
|
|
In |
Mm |
In |
mm |
(in) |
mm |
(in) |
mm |
|
28 |
7/36 |
0.14 |
3.556 |
0.015 |
0.381 |
0.041 |
1.041 |
0.045 |
1.143 |
1.91 |
26 |
19/38 |
0.0175 |
0.445 |
0.0204 |
0.518 |
0.046 |
1.168 |
0.05 |
1.27 |
2.57 |
24 |
19/36 |
0.0225 |
0.572 |
0.0244 |
0.62 |
0.051 |
1.295 |
0.055 |
1.397 |
3.35 |
22 |
19/34 |
0.0285 |
0.724 |
0.0314 |
0.798 |
0.058 |
1.473 |
0.062 |
1.575 |
4.59 |
20 |
19/32 |
0.0365 |
0.927 |
0.0395 |
1.003 |
0.066 |
1.676 |
0.07 |
1.778 |
6.41 |
|
