Application and description:
This PTFE insulated single-core MIL-W-22759/23 wires are used for MIL-Spec and Aerospace, They are ideal for aerospace and other applications requiring high reliability and break strength, enhanced flex life, and resistance to high temperatures. These wires work especially well in applications where smoke emission, overload stability and flammability are major concerns
Construction Details:
PTFE is extruded
Construction：

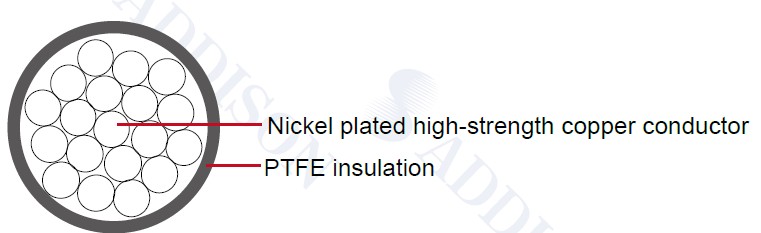

Conductor: Stranded nickel plated high-strength copper alloy conductor
Insulation: Extruded PTFE Insulation
Insulating Material Thickness: 0.8 mm to 1.5mm
Technical Parameters:
Temperature Rating: 260°C
Voltage Rating: 600 volts
SAE AS22759/23
Color Code: MIL-STD-681
AWG Size |
Conductor Stranding |
Conductor Diam. |
Conductor Diam. |
Min O.D. |
Max O.D. |
Approx LBS/MFT |
Min |
max |
|
|
In |
Mm |
In |
mm |
(in) |
Mm |
(in) |
mm |
|
28 |
7/36 |
0.014 |
0.356 |
0.016 |
0.406 |
0.031 |
0.787 |
0.035 |
0.889 |
1.34 |
26 |
19/38 |
0.0175 |
0.445 |
0.0204 |
0.518 |
0.036 |
0.914 |
0.04 |
1.016 |
1.92 |
24 |
19/36 |
0.0225 |
0.572 |
0.0254 |
0.645 |
0.041 |
1.041 |
0.045 |
1.143 |
2.63 |
22 |
19/34 |
0.0285 |
0.724 |
0.0314 |
0.798 |
0.047 |
1.194 |
0.051 |
1.295 |
3.73 |
20 |
19/32 |
0.0365 |
0.927 |
0.0404 |
1.026 |
0.056 |
1.422 |
0.06 |
1.524 |
5.44 |
|
