Application and description:
This PTFE insulation with a polyimide hard single-core MIL-W-22759/31 wires are used for MIL-Spec and Aerospace, These wires are designed for aerospace and other applications requiring excellent thermal stability, tight dimensional tolerances, and high reliability. These wires are especially well-suited in applications where smoke emission, overload stability, and flammability are major concerns

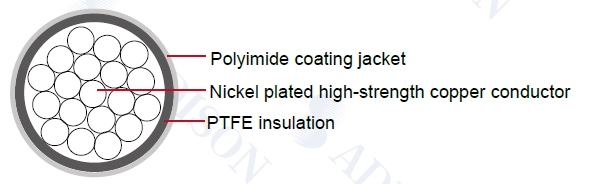

Construction Details:
PTFE is extruded
Construction：
Conductor: Stranded nickel plated high-strength copper alloy conductor
Insulation: Extruded PTFE Insulation
Insulating Material Thickness: 0.25mm
Jacket: Polyimide coating
Technical Parameters:
Temperature Rating: 260°C
Voltage Rating: 600 volts
SAE AS22759/31
Color Code: MIL-STD-681
AWG Size |
Conductor Stranding |
Conductor Diam. |
Conductor Diam. |
Min O.D. |
Max O.D. |
Approx LBS/MFT |
Min |
max |
|
|
In |
Mm |
In |
mm |
(in) |
Mm |
(in) |
mm |
|
28 |
7/36 |
0.014 |
0.356 |
0.016 |
0.406 |
0.032 |
0.813 |
0.036 |
0.914 |
1.37 |
26 |
19/38 |
0.0175 |
0.445 |
0.0204 |
0.518 |
0.037 |
0.94 |
0.041 |
1.041 |
1.99 |
24 |
19/36 |
0.0225 |
0.572 |
0.0254 |
0.645 |
0.042 |
1.067 |
0.046 |
1.168 |
2.73 |
22 |
19/34 |
0.0285 |
0.724 |
0.0314 |
0.798 |
0.048 |
1.219 |
0.052 |
1.321 |
3.77 |
20 |
19/32 |
0.0365 |
0.927 |
0.0404 |
1.026 |
0.057 |
1.448 |
0.061 |
1.549 |
5.55 |
