Application and description:
This ETFE insulation single-core MIL-W-22759/33 wires are used for MIL-Spec and Aerospace, These cable is a light weight, high temperature airframe and avionics wire which utilizes an insulation of cross-linked, modified ethylene tetrafluoroethylene copolymer (ETFE). ETFE insulation resists high PH cleaning fluids, fuels, lubricants and many other chemicals. MIL-W-22759/33 wires are mechanically tough, flame retardant and weight saving.
Construction Details:
Single layer over conductor
Construction：

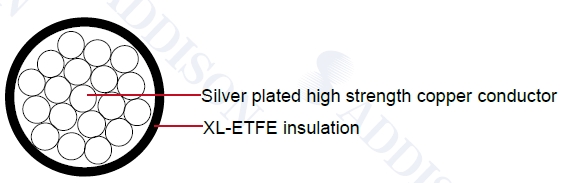

Conductor: Silver coated high strength copper alloy conductor
Insulation: Fluoropolymer Cross-linked Modified ETFE Single Insulation
Insulating Material Thickness: 0.15mm
Technical Parameters:
Temperature Rating: 200°C
Voltage Rating: 600 volts
MIL-Spec Wire
SAE AS22759/33
Color Code: 10 basic colors
AWG Size |
Conductor Stranding |
Conductor Diam. |
Conductor Diam. |
Max. Resistance @ 20°C OHMS/MFT |
Min O.D. |
Max O.D. |
Approx LBS/MFT |
Min |
max |
|
|
In |
Mm |
In |
Mm |
|
(in) |
Mm |
(in) |
mm |
|
30 |
7/38 |
0.011 |
0.279 |
0.012 |
0.305 |
117.4 |
0.022 |
0.559 |
0.026 |
0.66 |
0.66 |
28 |
7/36 |
0.014 |
0.356 |
0.016 |
0.406 |
74.4 |
0.025 |
0.635 |
0.029 |
0.737 |
0.91 |
26 |
19/38 |
0.018 |
0.457 |
0.02 |
0.508 |
44.8 |
0.03 |
0.762 |
0.034 |
0.864 |
1.4 |
24 |
19/36 |
0.023 |
0.584 |
0.026 |
0.66 |
28.4 |
0.035 |
0.889 |
0.039 |
0.991 |
2 |
22 |
19/34 |
0.029 |
0.737 |
0.033 |
0.838 |
17.5 |
0.041 |
1.041 |
0.045 |
1.143 |
2.9 |
20 |
19/32 |
0.037 |
0.94 |
0.041 |
1.041 |
10.7 |
0.048 |
1.219 |
0.052 |
1.321 |
4.4 |
