Application and description:
This ETFE insulation single-core MIL-W-22759/41 wires are used for MIL-Spec and Aerospace, These normal weight, high temperature airframe and avionics wires have contrasting colored insulation layers which provide a visual indication of possible abrasion or other mechanical damage due to physical abuse during service or installation. The insulation resists high PH cleaning fluids, lubricating oils, fuel and many other chemicals ,MIL-W-22759/41 wires are mechanically tough, flame retardant and weight saving.

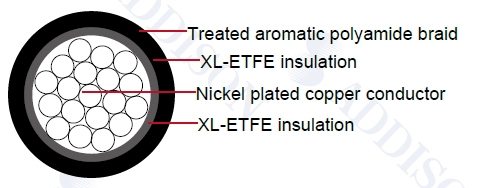

Construction Details:
Dual layers over conductor
Construction：
Conductor: Stranded nickel plated copper conductor
Insulation: Cross-linked ETFE insulation
Insulating Material Thickness: 0.25mm
Jacket: Cross-linked ETFE
Braid: Treated aromatic polyamide for size 2 and larger only
Technical Parameters:
Temperature Rating: 200°C
Voltage Rating: 600 volts
MIL-Spec Wire
SAE AS22759/41
Color Code: MIL-STD-681
AWG Size |
Conductor Stranding |
Conductor Diam. |
Conductor Diam. |
Min O.D. |
Max O.D. |
Approx LBS/MFT |
Min |
max |
|
|
In |
Mm |
In |
mm |
(in) |
Mm |
(in) |
mm |
|
26 |
19/38 |
0.018 |
0.457 |
0.02 |
0.508 |
0.038 |
0.965 |
0.042 |
1.067 |
1.7 |
24 |
19/36 |
0.023 |
0.584 |
0.025 |
0.635 |
0.043 |
1.092 |
0.047 |
1.194 |
2.3 |
22 |
19/34 |
0.029 |
0.737 |
0.031 |
0.787 |
0.048 |
1.219 |
0.052 |
1.321 |
3.2 |
20 |
19/32 |
0.037 |
0.94 |
0.039 |
0.991 |
0.056 |
1.422 |
0.06 |
1.524 |
4.7 |
18 |
19/30 |
0.046 |
1.168 |
0.049 |
1.245 |
0.067 |
1.702 |
0.073 |
1.854 |
7.2 |
16 |
19/29 |
0.052 |
1.321 |
0.053 |
1.346 |
0.074 |
1.88 |
0.08 |
2.032 |
9 |
14 |
19/27 |
0.065 |
1.651 |
0.069 |
1.753 |
0.091 |
2.311 |
0.097 |
2.464 |
13.8 |
12 |
37/28 |
0.084 |
2.134 |
0.089 |
2.261 |
0.108 |
2.743 |
0.114 |
2.896 |
20.5 |
10 |
37/26 |
0.106 |
2.692 |
0.112 |
2.845 |
0.13 |
3.302 |
0.138 |
3.505 |
32.4 |
8 |
133/29 |
0.158 |
4.013 |
0.169 |
4.293 |
0.187 |
4.75 |
0.203 |
5.156 |
60.3 |
6 |
133/27 |
0.198 |
5.029 |
0.213 |
5.41 |
0.231 |
5.867 |
0.251 |
6.375 |
94.5 |
4 |
133/25 |
0.25 |
6.35 |
0.268 |
6.807 |
0.3 |
7.62 |
0.32 |
8.128 |
150 |
2 |
665/30 |
0.32 |
8.128 |
0.34 |
8.636 |
0.39 |
9.906 |
0.428 |
10.871 |
239 |
1 |
817/30 |
0.36 |
9.144 |
0.38 |
9.652 |
0.429 |
10.897 |
0.461 |
11.709 |
290 |
1/0 |
1045/30 |
0.395 |
10.033 |
0.425 |
10.795 |
0.469 |
11.913 |
0.501 |
12.725 |
377 |
2/0 |
1330/30 |
0.44 |
11.176 |
0.475 |
12.065 |
0.529 |
13.437 |
0.561 |
14.249 |
518 |
