Application and description:
This XL-ETFE insulation single-core MIL-W-22759/45 wires are used for MIL-Spec and Aerospace, ETFE insulation resists high PH cleaning fluids, fuels, lubricants and many other chemicals, MIL-W-22759/45 wires are mechanically tough, flame retardant and weight saving.

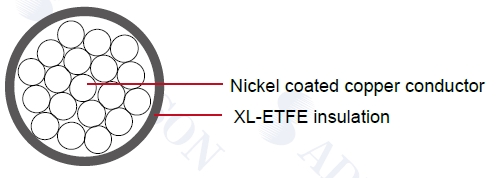

Construction Details:
Single layer over conductor
Construction：
Conductor: Nickel coated copper
Insulation: XL-ETFE Single Layer
Insulating Material Thickness: 0.15mm
Technical Parameters:
Temperature Rating: 200°C
Voltage Rating: 600 volts
MIL-Spec Wire
SAE AS22759/45
Color Code: MIL-STD-681
AWG Size |
Conductor Stranding |
Conductor Diam. |
Conductor Diam. |
Min O.D. |
Max O.D. |
Approx LBS/MFT |
Min |
max |
|
|
In |
Mm |
In |
mm |
(in) |
Mm |
(in) |
mm |
|
28 |
7/36 |
0.014 |
0.356 |
0.016 |
0.406 |
0.025 |
0.635 |
0.029 |
0.737 |
0.91 |
26 |
19/38 |
0.018 |
0.457 |
0.022 |
0.559 |
0.03 |
0.762 |
0.034 |
0.864 |
1.4 |
24 |
19/36 |
0.023 |
0.584 |
0.024 |
0.61 |
0.035 |
0.889 |
0.039 |
0.991 |
2 |
22 |
19/34 |
0.029 |
0.737 |
0.031 |
0.787 |
0.041 |
1.041 |
0.045 |
1.143 |
2.8 |
20 |
19/32 |
0.037 |
0.94 |
0.039 |
0.991 |
0.048 |
1.219 |
0.052 |
1.321 |
4.3 |
18 |
19/30 |
0.046 |
1.168 |
0.049 |
1.245 |
0.058 |
1.473 |
0.062 |
1.575 |
6.5 |
16 |
19/29 |
0.052 |
1.321 |
0.053 |
1.346 |
0.066 |
1.676 |
0.07 |
1.778 |
8.3 |
14 |
19/27 |
0.065 |
1.651 |
0.069 |
1.753 |
0.082 |
2.083 |
0.088 |
2.235 |
13 |
12 |
37/28 |
0.084 |
2.134 |
0.089 |
2.261 |
0.1 |
2.54 |
0.106 |
2.692 |
19.7 |
