Application and description:
This PTFE insulated single-core MIL-W-22759/8 wires are used for MIL-Spec and Aerospace, government applications or aircraft engines and used where extra abrasion resistance and good flexibility are required.
Construction Details:
PTFE is extruded

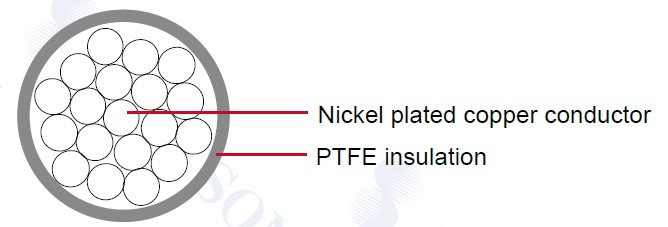

Construction：
Conductor: Stranded nickel plated copper conductor
Insulation: Mineral filled PTFE Teflon Insulation
Insulating Material Thickness: 0.4 mm to 0.9mm
Technical Parameters:
Temperature Rating: 260°C
Voltage Rating: 600 volts
SAE AS22759/8
Color Code: MIL-STD-681
AWG Size |
Conductor Stranding |
Conductor Diam. |
Conductor Diam. |
Min O.D. |
Max O.D. |
Approx LBS/MFT |
Min |
max |
|
|
In |
Mm |
In |
mm |
(in) |
mm |
(in) |
mm |
|
24 |
19/36 |
0.023 |
0.584 |
0.026 |
0.66 |
0.06 |
1.524 |
0.064 |
1.626 |
4.3 |
22 |
19/34 |
0.029 |
0.737 |
0.033 |
0.838 |
0.071 |
1.803 |
0.075 |
1.905 |
6 |
20 |
19/32 |
0.037 |
0.94 |
0.041 |
1.041 |
0.08 |
2.032 |
0.084 |
2.134 |
8.1 |
18 |
19/30 |
0.046 |
1.168 |
0.052 |
1.321 |
0.09 |
2.286 |
0.094 |
2.388 |
11 |
16 |
19/29 |
0.052 |
1.321 |
0.058 |
1.473 |
0.099 |
2.515 |
0.105 |
2.667 |
13.8 |
14 |
19/27 |
0.065 |
1.651 |
0.073 |
1.854 |
0.112 |
2.845 |
0.118 |
2.997 |
18.6 |
12 |
19/25 |
0.087 |
2.21 |
0.092 |
2.337 |
0.131 |
3.327 |
0.137 |
3.48 |
28.5 |
10 |
37/26 |
0.106 |
2.692 |
0.114 |
2.896 |
0.154 |
3.912 |
0.162 |
4.115 |
41.8 |
8 |
133/29 |
0.158 |
4.013 |
0.173 |
4.394 |
0.215 |
5.461 |
0.225 |
5.715 |
73.1 |
6 |
133/27 |
0.198 |
5.029 |
0.217 |
5.512 |
0.264 |
6.706 |
0.276 |
7.01 |
113 |
4 |
133/25 |
0.25 |
6.35 |
0.274 |
6.96 |
0.319 |
8.103 |
0.333 |
8.458 |
173 |
|
