Application and description:
This PTFE tape insulation single-core MIL-W-22759/83 wires are used for MIL-Spec and Aerospace, these cables are large size, high-performance aerospace hook up wires with a four-layer insulation of PTFE tape and PTFE/polyimide/PTFE tape, with an outer layer of polyamide braid for superior abrasion resistance. These wires are designed for aerospace and other applications which require excellent thermal stability and abrasion resistance.
Construction Details:

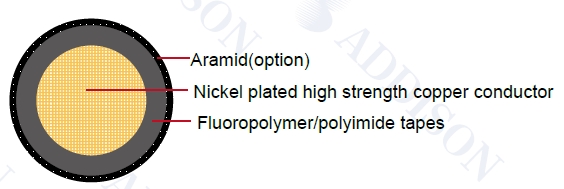

A PTFE layer with an intermediate K layer followed by two top PTFE layers Over these layers is a braid of an Aramid.
Construction：
Conductor: Stranded silver plated copper conductor
Insulation: Fluoropolymer/Polyimide Tape insulation
Braid：Aramid（option）
Insulating Material Thickness: 1.0mm to 1.3mm
Technical Parameters:
Temperature Rating: 200°C
Voltage Rating: 600 volts
MIL-Spec Wire
SAE AS22759/83
Color Code: MIL-STD-681
AWG Size |
Conductor Stranding |
Conductor Diam. |
Conductor Diam. |
Min O.D. |
Max O.D. |
Approx LBS/MFT |
Min |
max |
|
|
In |
Mm |
In |
mm |
(in) |
mm |
(in) |
mm |
|
2 |
665/30 |
0.32 |
8.128 |
0.34 |
8.636 |
0.36 |
9.144 |
0.38 |
9.652 |
227 |
1 |
817/30 |
0.366 |
9.296 |
0.38 |
9.652 |
0.4 |
10.16 |
0.42 |
10.668 |
295 |
1/0 |
1045/30 |
0.395 |
10.033 |
0.425 |
10.795 |
0.442 |
11.227 |
0.462 |
11.735 |
351 |
2/0 |
1330/30 |
0.44 |
11.176 |
0.475 |
12.065 |
0.498 |
12.649 |
0.528 |
13.411 |
432 |
3/0 |
1665/30 |
0.5 |
12.7 |
0.54 |
13.716 |
0.554 |
14.072 |
0.584 |
14.834 |
542 |
4/0 |
2109/30 |
0.565 |
14.351 |
0.605 |
15.367 |
0.615 |
15.621 |
0.655 |
16.637 |
689 |
