Application and description:
This PTFE tape insulation single-core MIL-W-22759/88 wires are used for MIL-Spec and Aerospace, these cables are normal weight, high-performance, aerospace hook up wireswith insulation composed of PTFE/polyimide/PTFE tape and PTFE tape in severalconfigurations. These wires are designed for aerospace and other applications which require excellent thermal stability and good abrasion resistance.
Construction Details:
Sizes 10 to 26 have a PTFE/K/PTFE layer construction. Sizes 6 to 8 have a PTFE layer with an intermediate K layer and a top PTFE layer. Sizes 4 to 04 have a PTFE layer with an intermediate K layer and two top PTFE layers.

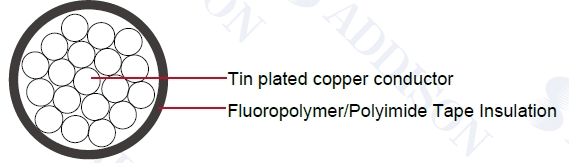

Construction：
Conductor: Stranded tin plated copper conductor
Insulation: Fluoropolymer/Polyimide Tape Insulation
Insulating Material Thickness: Size 10 to 26 - 0.5 mm; Size 6 to 8 - 0.6 mm; Size 4 -0.6 mm; Size 2 to 04 - 0.6 mm
Technical Parameters:
Temperature Rating: 150°C
Voltage Rating: 600 volts
MIL-Spec Wire
SAE AS22759/88
Color Code: MIL-STD-681
AWG Size |
Conductor Stranding |
Conductor Diam. |
Conductor Diam. |
Min O.D. |
Max O.D. |
Approx LBS/MFT |
Min |
max |
|
|
In |
Mm |
In |
mm |
(in) |
mm |
(in) |
mm |
|
26 |
19/38 |
0.033 |
0.838 |
0.037 |
0.94 |
0.033 |
0.838 |
0.037 |
0.94 |
1.55 |
24 |
19/36 |
0.038 |
0.965 |
0.042 |
1.067 |
0.038 |
0.965 |
0.042 |
1.067 |
2.15 |
22 |
19/34 |
0.043 |
1.092 |
0.047 |
1.194 |
0.043 |
1.092 |
0.047 |
1.194 |
3 |
20 |
19/32 |
0.051 |
1.295 |
0.055 |
1.397 |
0.051 |
1.295 |
0.055 |
1.397 |
4.55 |
18 |
19/30 |
0.061 |
1.549 |
0.065 |
1.651 |
0.061 |
1.549 |
0.065 |
1.651 |
6.7 |
16 |
19/29 |
0.068 |
1.727 |
0.073 |
1.854 |
0.068 |
1.727 |
0.073 |
1.854 |
8.6 |
14 |
19/27 |
0.081 |
2.057 |
0.083 |
2.108 |
0.081 |
2.057 |
0.086 |
2.184 |
12.95 |
12 |
37/28 |
0.1 |
2.54 |
0.105 |
2.667 |
0.1 |
2.54 |
0.105 |
2.667 |
20.1 |
10 |
37/26 |
0.122 |
3.099 |
0.127 |
3.226 |
0.122 |
3.099 |
0.127 |
3.226 |
31.4 |
8 |
133/29 |
0.18 |
4.572 |
0.188 |
4.775 |
0.18 |
4.572 |
0.188 |
4.775 |
57.6 |
6 |
133/27 |
0.219 |
5.563 |
0.229 |
5.817 |
0.219 |
5.563 |
0.229 |
5.817 |
88.3 |
4 |
133/25 |
0.276 |
7.01 |
0.288 |
7.315 |
0.276 |
7.01 |
0.288 |
7.315 |
143 |
2 |
665/30 |
0.344 |
8.738 |
0.364 |
9.246 |
0.344 |
8.738 |
0.364 |
9.246 |
222 |
1 |
817/30 |
0.388 |
9.855 |
0.408 |
10.363 |
0.388 |
9.855 |
0.408 |
10.363 |
289 |
1/0 |
1045/30 |
0.42 |
10.668 |
0.45 |
11.43 |
0.42 |
10.668 |
0.45 |
11.43 |
345 |
2/0 |
1330/30 |
0.475 |
12.065 |
0.505 |
12.827 |
0.475 |
12.065 |
0.505 |
12.827 |
432 |
3/0 |
1665/30 |
0.55 |
13.97 |
0.56 |
14.224 |
0.53 |
13.462 |
0.56 |
14.224 |
542 |
4/0 |
2109/30 |
0.59 |
14.986 |
0.63 |
16.002 |
0.59 |
14.986 |
0.63 |
16.002 |
681 |
