Application and description:
This PTFE insulated single-core MIL-W-22759/9 wires are used for MIL-Spec and Aerospace applications or aircraft engines, These wires work especially well in applications where smoke emission, overload stability, and flammability are major concerns

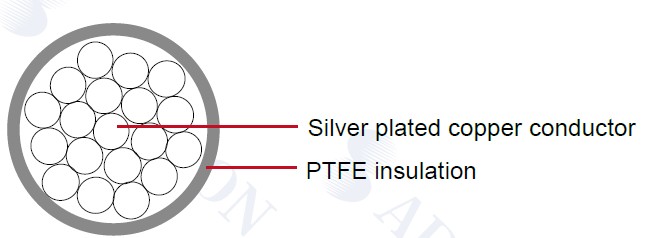

Construction Details:
PTFE is extruded
Construction：
Conductor: Stranded silver plated copper conductor
Insulation: Extruded PTFE Teflon Insulation
Insulating Material Thickness: 0.40 mm
Technical Parameters:
Temperature Rating: 200°C
Voltage Rating: 1000 volts
SAE AS22759/9
Color Code: MIL-STD-681
AWG Size |
Conductor Stranding |
Conductor Diam. |
Conductor Diam. |
Min O.D. |
Max O.D. |
Approx LBS/MFT |
Min |
max |
|
|
In |
Mm |
In |
mm |
(in) |
Mm |
(in) |
mm |
|
28 |
7/36 |
0.014 |
0.356 |
0.015 |
0.381 |
0.041 |
1.041 |
0.045 |
1.143 |
1.9 |
26 |
19/36 |
0.018 |
0.457 |
0.02 |
0.508 |
0.046 |
1.168 |
0.05 |
1.27 |
2.6 |
24 |
19/38 |
0.025 |
0.635 |
0.025 |
0.635 |
0.051 |
1.295 |
0.055 |
1.397 |
3.3 |
22 |
19/34 |
0.0285 |
0.724 |
0.0304 |
0.772 |
0.058 |
1.473 |
0.062 |
1.575 |
4.6 |
20 |
19/32 |
0.0365 |
0.927 |
0.0384 |
0.975 |
0.066 |
1.676 |
0.07 |
1.778 |
6.4 |
18 |
19/30 |
0.0455 |
1.156 |
0.0484 |
1.229 |
0.076 |
1.93 |
0.08 |
2.032 |
9.1 |
16 |
19/29 |
0.0515 |
1.308 |
0.0544 |
1.382 |
0.083 |
2.108 |
0.087 |
2.21 |
11 |
14 |
19/27 |
0.0645 |
1.638 |
0.0684 |
1.737 |
0.097 |
2.464 |
0.103 |
2.616 |
16.4 |
12 |
19/25 |
0.0835 |
2.121 |
0.0874 |
2.22 |
0.116 |
2.946 |
0.124 |
3.15 |
25.3 |
10 |
37/26 |
0.106 |
2.692 |
0.11 |
2.794 |
0.137 |
3.48 |
0.145 |
3.683 |
38.2 |
8 |
133/29 |
0.158 |
4.013 |
0.166 |
4.216 |
0.202 |
5.131 |
0.212 |
5.385 |
68.8 |
|
