Application and description:
This PTFE tape insulation single-core MIL-W-22759/92 wires are used for MIL-Spec and Aerospace, these cables are light weight, high-performance, aerospace hook up wires with insulation composed of PTFE/polyimide/PTFE tape and PTFE tape. These wires are designed for aerospace and other applications which require excellent thermal stability and light weight
Construction Details:
A PTFE/K/PTFE layer construction
Construction：

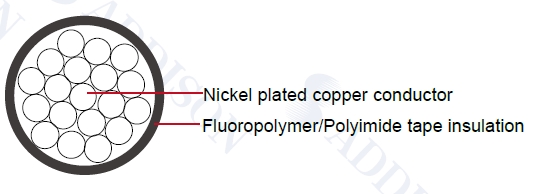

Conductor: Stranded nickel plated copper conductor
Insulation: Fluoropolymer/Polyimide Tape Insulation
Insulating Material Thickness: 0.30mm
Technical Parameters:
Temperature Rating: 260°C
Voltage Rating: 600 volts
MIL-Spec Wire
SAE AS22759/92
Color Code: MIL-STD-681
AWG Size |
Conductor Stranding |
Conductor Diam. |
Conductor Diam. |
Min O.D. |
Max O.D. |
Approx LBS/MFT |
Min |
max |
|
|
In |
Mm |
In |
mm |
(in) |
mm |
(in) |
mm |
|
26 |
19/38 |
0.0175 |
0.44 |
0.0204 |
0.52 |
0.03 |
0.762 |
0.034 |
0.864 |
1.43 |
24 |
19/36 |
0.0225 |
0.57 |
0.0244 |
0.62 |
0.034 |
0.864 |
0.038 |
0.965 |
1.93 |
22 |
19/34 |
0.0285 |
0.72 |
0.0314 |
0.8 |
0.04 |
1.016 |
0.043 |
1.092 |
2.85 |
20 |
19/32 |
0.0365 |
0.93 |
0.0394 |
1 |
0.048 |
1.219 |
0.051 |
1.295 |
4.38 |
18 |
19/30 |
0.0455 |
1.16 |
0.0494 |
1.25 |
0.056 |
1.422 |
0.06 |
1.524 |
6.6 |
16 |
19/29 |
0.0515 |
1.31 |
0.0554 |
1.41 |
0.063 |
1.6 |
0.067 |
1.702 |
8.3 |
14 |
19/27 |
0.0645 |
1.64 |
0.0694 |
1.76 |
0.076 |
1.93 |
0.08 |
2.032 |
12.6 |
12 |
37/28 |
0.0835 |
2.12 |
0.0894 |
2.27 |
0.096 |
2.438 |
0.1 |
2.54 |
19.6 |
10 |
37/26 |
0.106 |
2.69 |
0.112 |
2.84 |
0.119 |
3.023 |
0.123 |
3.124 |
30.6 |
