Applications:
MIL-W-81044 wire may be used for airframe, avionics, military vehicle, shipboard, missile and other electronic applications, Additionally, the dual layer, lightweight, high temperature wire offers outstanding performance that makes it suitable for many functions where high density cabling and harnessing are required, these wires have excellent resistance to cut-through, abrasion, cold flow, shrink back, notch propagation and common chemicals.

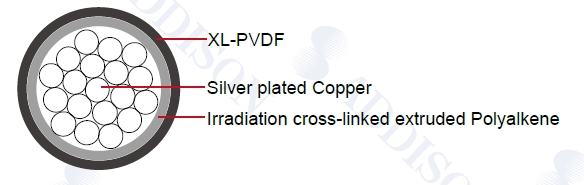

Construction Details
The jacket is XL-PVDF
Construction
Conductor: Silver plated Copper
Insulation：Irradiation cross-linked extruded Polyalkene insulation
jacket ：Extruded XL Polyvinylidene Fluoride (XL-PVDF)
Insulating Material Thickness：0.8 mm to 2.2mm
Characteristics
Temperature Rating: 150°C
Voltage Rating: 600 volts
MIL-W-81044/5
SAE AS81044
10 basic colors
Dimensions and Weight
AWG Size |
Conductor Stranding |
Min O.D. |
Max O.D. |
Approx LBS/MFT |
|
|
In |
Mm |
In |
mm |
|
24 |
19/36 |
0.055 |
1.397 |
0.059 |
1.499 |
3.0 |
22 |
19/34 |
0.066 |
1.676 |
0.072 |
1.829 |
4.3 |
20 |
19/32 |
0.075 |
1.905 |
0.081 |
2.057 |
6.1 |
18 |
19/30 |
0.085 |
2.159 |
0.091 |
2.311 |
8.7 |
16 |
19/29 |
0.095 |
2.413 |
0.101 |
2.565 |
10.9 |
14 |
19/27 |
0.111 |
2.819 |
0.119 |
3.023 |
16.2 |
12 |
37/28 |
0.127 |
3.226 |
0.135 |
3.429 |
24.2 |
10 |
37/26 |
0.156 |
3.962 |
0.166 |
4.216 |
36.5 |
8 |
133/29 |
0.213 |
5.410 |
0.225 |
5.715 |
65 |
6 |
133/27 |
0.262 |
6.655 |
0.276 |
7.010 |
103.0 |
4 |
133/25 |
0.317 |
8.052 |
0.333 |
8.458 |
158.0 |
2 |
665/30 |
0.392 |
9.957 |
0.416 |
10.566 |
252.0 |
1/0 |
1045/30 |
0.478 |
12.141 |
0.510 |
12.954 |
380.0 |
