CSA REW XLPVC Hook – up Wire |
Conductor:
Annealed Copper Wire, (Bare Single,Tinned Single, Tinned Strand,or Top-Tinned Strand)
Insulation:
XLPVC (Cross – Linked Polyvinyl Chloride)

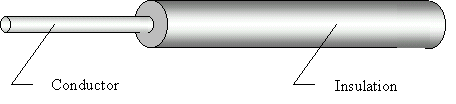

Structure:
Conductor |
Insulation |
Conductor
Resistance(20℃) |
AWG |
Construction |
Diameter |
Min
Thickness |
Nominal
Thickness |
Diameter |
28 |
7 / 0.13TA |
approx.0.39 mm |
0.33 mm
|
0.41 mm |
1.22 ± 0.10 mm |
228.22W / Km |
26 |
7 / 0.16TA |
approx 0.48 mm |
1.32 ± 0.10 mm |
142.55W / Km |
24 |
11 / 0.16TA |
approx 0.61 mm |
1.40 ± 0.10 mm |
88.77W / Km |
24 |
7 / 0.20TA |
approx 0.60 mm |
1.55 ± 0.10 mm |
57.44W / Km |
22 |
17 / 0.16TA |
approx 0.76 mm |
1.76 ± 0.10 mm |
37.09W / Km |
22 |
7 / 0.26TA |
approx 0.78 mm |
2.10 ± 0.10 mm |
22.91W / Km |
Characteristics:
Items |
Specification |
Rating |
105℃ 300V |
Dielectric Strength |
AC 3000V / min. |
Insulation Resistance |
Min. 10MW - Km (20℃) at DC 500V |
Flame Test |
UL:VW-1 CSA:FT-1 |
Elongation of Insulation |
Min.100 ﹪ |
Tensile Strength of Insulation |
Min.1500Kg / mm2 |
Residual of Elongation after Aging |
Min. 65 ﹪of original (136℃,168H) |
Residual of Tensile Strength after Aging |
Min. 70 ﹪of original (136℃,168H) |
|
|
|
