Shield Wise
|
|
|
| |
 Conductor：
Tinned Copper Strand.
Insulation：
FRPE ( Flame Retardant Polyethylene )or PE (Polyethylene)
Wrapping Shield：
Bare or Tinned Copper on Twisted Wires
Sheath:
PVC( Polyvinyl Chloride)

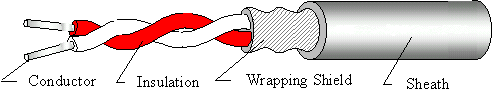

Structure：
Conductor |
Insulation |
Wrapping Shield |
Sheath |
AWG |
Construction |
Diameter |
Min.
Thickness |
Nominal
Thickness |
Diameter |
Construction |
Diameter |
Min.
Thickness |
Nominal
Thickness |
Diameter |
32 |
7 / 0.08TAX2C |
approx.0.24 mm |
0.14 mm |
0.18 mm |
0.60 ± 0.10 mm |
42 / 0.08 |
1.36 mm |
0.16 mm |
0.195 mm |
1.75 ± 0.10 mm |
30 |
7 / 0.10TAX2C |
approx.0.30 mm |
0.14 mm |
0.20 mm |
0.70 ± 0.10 mm |
42 / 0.10 |
1.40 mm |
0.16 mm |
0.275 mm |
2.15 ± 0.10 mm |
28 |
7 / 0.13TAX2C |
approx.0.39 mm |
0.15 mm |
0.205mm |
0.80 ± 0.10 mm |
46 / 0.10 |
1.80 mm |
0.22 mm |
0.30 mm |
2.40 ± 0.10 mm |
26 |
7 / 0.16TAX2C |
approx.0.48 mm |
0.15 mm |
0.21 mm |
0.90 ± 0.10 mm |
50 / 0.10 |
2.00 mm |
0.22 mm |
0.275 mm |
2.55 ± 0.10 mm |
24 |
7 / 0.20TAX2C |
approx.0.60 mm |
0.15 mm |
0.20 mm |
1.00 ± 0.10 mm |
50 / 0.10 |
2.20 mm |
0.22 mm |
0.30 mm |
2.80 ± 0.10 mm |
24 |
11/ 0.16TAX2C |
approx.0.61 mm |
0.15 mm |
0.195 mm |
1.00 ± 0.10 mm |
52 / 0.10 |
2.20 mm |
0.22 mm |
0.30 mm |
2.80 ± 0.10 mm |
32 |
7 / 0.08TAX3C |
approx.0.24 mm |
0.14 mm |
0.18 mm |
0.60 ± 0.10 mm |
45 / 0.08 |
1.45 mm |
0.18 mm |
0.225 mm |
1.90 ± 0.10 mm |
30 |
7 / 0.10TAX3C |
approx.0.30 mm |
0.14 mm |
0.20 mm |
0.70 ± 0.10 mm |
42 / 0.10 |
1.40 mm |
0.18 mm |
0.27 mm |
2.25 ± 0.10 mm |
28 |
7 / 0.13TAX3C |
approx.0.30 mm |
0.15mm |
0.205 mm |
0.80 ± 0.10 mm |
48 / 0.10 |
1.92 mm |
0.22 mm |
0.265 mm |
2.45 ± 0.10 mm |
26 |
7 / 0.16TAX3C |
approx.0.48 mm |
0.15 mm |
0.21 mm |
0.90 ± 0.10 mm |
53 / 0.10 |
2.00 mm |
0.22 mm |
0.28 mm |
2.70 ± 0.10 mm |
24 |
7 / 0.20TAX3C |
approx.0.60 mm |
0.15 mm |
0.20 mm |
1.00 ± 0.10 mm |
58 / 0.10 |
2.20 mm |
0.22 mm |
0.275 mm |
2.90 ± 0.10 mm |
24 |
11 /0.16TAX3C |
approx.0.61 mm |
0.15 mm |
0.195 mm |
1.00 ± 0.10 mm |
58 / 0.10 |
2.20 mm |
0.22 mm |
0.275 mm |
2.90 ± 0.10 mm |
32 |
7 / 0.08TAX4C |
approx.0.24 mm |
0.14 mm |
0.18 mm |
0.60 ± 0.10 mm |
52 / 0.10 |
1.61 mm |
0.16 mm |
0.195 mm |
2.00 ± 0.10 mm |
30 |
7 / 0.10TAX4C |
approx.0.30 mm |
0.14 mm |
0.20 mm |
0.70 ± 0.10 mm |
49 / 0.10 |
1.89 mm |
0.20 mm |
0.27 mm |
2.25 ± 0.10 mm |
28 |
7 / 0.13TAX4C |
approx.0.39 mm |
0.15 mm |
0.205 mm |
0.80 ± 0.10 mm |
55 / 0.10 |
2.13 mm |
0.20 mm |
0.235 mm |
2.60 ± 0.10 mm |
26 |
7 / 0.16TAX4C |
approx.0.48 mm |
0.15 mm |
0.21 mm |
0.90 ± 0.10 mm |
61 / 0.10 |
2.37 mm |
0.22 mm |
0.24 mm |
2.85 ± 0.10 mm |
30 |
7 / 0.10TAX7C |
approx.0.30 mm |
0.14 mm |
0.20 mm |
0.70 ± 0.10 mm |
62 / 0.10 |
2.30 mm |
0.21 mm |
0.25 mm |
2.80 ± 0.10 mm |
Characteristics：
Items |
Specification |
Rating |
UL：80℃ 30V |
Dielectric Strength |
Spark Test AC2000V / 0.15sec. |
Insulation Resistance |
Min.5MW - Km (20℃) at DC 500V |
Flame Test |
UL：VW – 1SC |
|
|
|
