AVSSX/AESSX
Application
Automotive cables XLPVC (XLPE) insulated single-core cable is used in electric system for automobile.

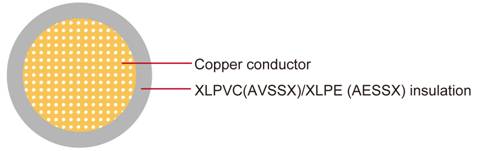

Construction:
Conductor:
Cu-ETP1 bare or tinned according to JIS C3102,
Insulation:
XLPVC (AVSSX)
XLPE (AESSX)
Standard Compliance:
JASO D 608-92
Technical Parameters:
Operating temperature:–40 °C to +105 °C (AVSSX)
Operating temperature:–40 °C to +120 °C (AESSX)
AVSSX |
|
Conductor |
Insulation |
Cable |
Nominal
cross-
section |
No. and Dia. of Wires. |
Diameter Max. |
Electrical resistance at 20℃ Max. |
thickness wall Nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight approx. |
mm2 |
No./mm |
mm |
mΩ/m |
mm |
Mm |
mm |
Kg/km |
1 x0.30 |
7/0.26 |
0.80 |
50.20 |
0.24 |
1.40 |
1.50 |
5 |
1 x0.50 |
7/0.32 |
1.00 |
32.70 |
0.24 |
1.60 |
1.70 |
7 |
1 x0.85 |
19/0.24 |
1.20 |
21.70 |
0.24 |
1.80 |
1.90 |
10 |
1 x0.85 |
7/0.40 |
1.10 |
20.80 |
0.24 |
1.80 |
1.90 |
10 |
1 x1.25 |
19/0.29 |
1.50 |
14.90 |
0.24 |
2.10 |
2.20 |
15 |
1 x2.00 |
19/0.37 |
1.90 |
9.00 |
0.32 |
2.70 |
2.80 |
23 |
1 x0.3f |
19/0.16 |
0.80 |
48.80 |
0.24 |
1.40 |
1.50 |
2 |
1 x0.5f |
19/0.19 |
1.00 |
34.60 |
0.30 |
1.60 |
1.70 |
7 |
1 x0.75f |
19/0.23 |
1.20 |
23.60 |
0.30 |
1.80 |
1.90 |
10 |
1 x1.25f |
37/0.21 |
1.50 |
14.60 |
0.30 |
2.10 |
2.20 |
14 |
1 x2f |
37/0.26 |
1.80 |
9.50 |
0.40 |
2.60 |
2.70 |
22 |
AESSX |
1 x0.3f |
19/0.16 |
0.80 |
48.80 |
0.30 |
1.40 |
1.50 |
5 |
1 x0.5f |
19/0.19 |
1.00 |
64.60 |
0.30 |
1.60 |
1.70 |
7 |
1 x0.75f |
19/0.23 |
1.20 |
23.60 |
0.30 |
1.80 |
1.90 |
10 |
1 x1.25f |
37/0.21 |
1.50 |
14.60 |
0.30 |
2.10 |
2.20 |
14 |
1 x2f |
37/0.26 |
1.80 |
9.50 |
0.40 |
2.60 |
2.70 |
22 |
The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter.
Note: Other configurations, sizes, colors and length not specified herein are available upon request
|
