Japanese Standard
CAVS
Application
Automotive PVC insulated single-core low tension cable is used for automotive wiring.

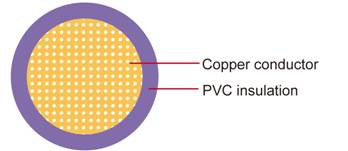

Construction:
Conductor:
Cu-ETP1 according to JIS C 3102
Insulation:
PVC
Standard Compliance:
JASO D 611-94
Technical Parameters:
Operating temperature:–40 °C to +80 °C
|
Conductor |
Insulation |
Cable |
Nominal
cross-
section |
No. and Dia. of Wires. |
Diameter Max. |
Electrical resistance at 20℃ Max. |
thickness wall Nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight approx. |
mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
mm |
Kg/km |
1 x0.30 |
7/0.26 |
0.70 |
50.20 |
0.35 |
1.40 |
1.50 |
3 |
1 x0.50 |
7/0.32 |
0.90 |
32.70 |
0.35 |
1.60 |
1.70 |
5 |
1 x0.85 |
11/0.32 |
1.10 |
20.80 |
0.35 |
1.80 |
1.90 |
7 |
1 x1.25 |
16/0.32 |
1.40 |
14.30 |
0.35 |
2.10 |
2.20 |
10 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
|
