Germany Standard
Single-core cable
FLRY-A
Application
Automotive PVC insulated single-core cable with symmetrical conductor structure (type A) and thin wall is used for automobiles, motorcycles electrical equipment in high temperature condition.

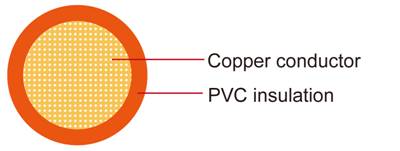

Construction:
Conductor:
Cu-ETP1 bare or tinned copper according to DIN EN13602
Insulation:
PVC
Standard Compliance:
ISO 6722 Class B
LV112
Technical Parameters:
Operating temperature:-40℃ to 105℃
|
Conductor |
Insulation |
Cable |
Nominal
cross-
section |
No. and Dia. of Wires |
Diameter max. |
Resistance at 20℃
Bare/tinned
max.
mΩ/m |
thickness Wall
min. |
Overall diameter max. |
Weight approx. |
mm2 |
No./mm |
(mm) |
mΩ/m |
(mm) |
(mm) |
kg/km |
1x0.22 |
7/0.21 |
0.70 |
84.80/86.50 |
0.20 |
1.20 |
3 |
1x0.35 |
7/0.26 |
0.80 |
52.00/54.50 |
0.20 |
1.30 |
5 |
1x0.50 |
19/0.19 |
1.00 |
37.10/38.20 |
0.22 |
1.60 |
7 |
1x0.75 |
19/0.23 |
1.20 |
24.70/25.40 |
0.24 |
1.90 |
9 |
1x1.00 |
19/0.26 |
1.35 |
18.50/19.10 |
0.24 |
2.10 |
11 |
1x1.50 |
19/0.32 |
1.70 |
12.70/13.00 |
0.24 |
2.40 |
16 |
1x2.00 |
19/0.37 |
2.00 |
9.42/9.69 |
0.24 |
2.60 |
23 |
1x2.50 |
19/0.41 |
2.20 |
7.60/7.80 |
0.28 |
3.00 |
26 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
|
