HDT
Application
Automotive PVC insulated single-core cable is used for automobiles, motorcycles and other motor vehicles.

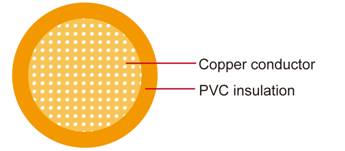

Construction:
Conductor:
Soft-annealed copperaccording to ASTM B3
Insulation:
PVC
Standard Compliance:
SAE J1128
Technical Parameters:
Operating temperature:–40 °C to +85 °C
Conductor |
Insulation |
Cable |
SIZE |
Nominal
cross-
section |
No. and Dia. of Wires |
Diameter Max. |
thickness wall Nom. |
Overall Diameter max. |
Weight approx. |
AWG |
mm2 |
No./mm |
mm |
mm |
mm |
Kg/km |
20 |
1 x 0.50 |
7\0.32 |
1.00 |
0.91 |
2.80 |
13 |
18 |
1 x 0.80 |
19\0.23 |
1.50 |
0.94 |
3.00 |
17 |
16 |
1 x 1.00 |
19\0.29 |
1.50 |
1.02 |
3.50 |
23 |
14 |
1 x 2.00 |
19\0.36 |
1.80 |
1.04 |
3.90 |
31 |
12 |
1 x 3.00 |
19\0.45 |
2.30 |
1.17 |
4.60 |
16 |
10 |
1 x 5.00 |
19\0.26 |
3.00 |
1.17 |
5.30 |
67 |
8 |
1 x 8.00 |
19\0.45 |
3.70 |
1.40 |
6.50 |
104 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
|
