American Standard
SXL
Application
Automotive XLPE insulated single-core cable is used in automotive applications where higher heat resistance is required.

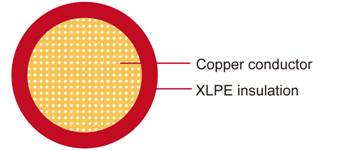

Construction:
Conductor:
Soft-annealed copperaccording to ASTM B3
Insulation:
XLPE (Polyethylene crosslinked)
Standard Compliance:
SAE J1128
Technical Parameters:
Operating temperature:–40 °C to +125 °C
Conductor |
Insulation |
Cable |
SIZE |
Nominal
cross-
section |
No. and Dia. of Wires |
Diameter Max. |
thickness wall min. |
Nominal Wall thickness Nom. |
Overall Diameter (max..) |
Weight approx. |
AWG |
mm2 |
No./mm |
mm |
mm |
mm |
mm |
Kg/km |
20 |
1 x 0.50 |
7\0.32 |
0.97 |
0.52 |
0.74 |
2.80 |
11 |
18 |
1 x 0.80 |
19\0.23 |
1.17 |
0.53 |
0.76 |
3.00 |
15 |
16 |
1 x 1.00 |
19\0.28 |
1.45 |
0.57 |
0.81 |
3.40 |
20 |
14 |
1 x 2.00 |
19\0.36 |
1.80 |
0.62 |
0.89 |
3.90 |
29 |
12 |
1 x 3.00 |
19\0.45 |
2.29 |
0.66 |
0.94 |
4.60 |
43 |
10 |
1 x 5.00 |
19\0.57 |
2.87 |
0.73 |
1.04 |
5.30 |
64 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
|
