American Standard
TWP
Application
Automotive PVC insulated single-core cable is used in automotive applications where small diameter and minimal weight is required.

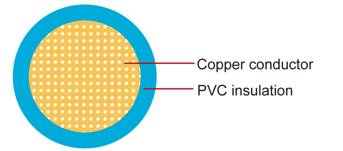

Construction:
Conductor:
Soft-annealed copperaccording to ASTM B3
Insulation:
PVC
Standard Compliance:
SAE J1128
Technical Parameters:
Operating temperature:–40 °C to +80 °C (3000 hrs)
|
Conductor |
Insulation |
Cable |
SIZE |
Nominal
cross-
section |
No. and Dia. of Wires |
Diameter Max. |
thickness wall min. |
thickness wall Nom. |
Overall Diameter max. |
Weight approx. |
AWG |
mm2 |
No./mm |
mm |
mm |
mm |
mm |
Kg/km |
22 |
1 x 0.35 |
7/0.25 |
0.76 |
0.28 |
0.40 |
1.70 |
6 |
20 |
1 x 0.50 |
7/0.32 |
0.97 |
0.28 |
0.40 |
1.90 |
8 |
18 |
1 x 0.80 |
16/0.25 |
1.17 |
0.28 |
0.40 |
2.20 |
11 |
18 |
1x 0.80 |
19/0.23 |
1.17 |
0.28 |
0.40 |
2.20 |
11 |
16 |
1x 1.00 |
19/0.28 |
1.45 |
0.28 |
0.40 |
2.40 |
15 |
14 |
1 x 2.00 |
19/0.36 |
1.80 |
0.28 |
0.40 |
2.70 |
22 |
12 |
1 x 3.00 |
19/0.45 |
2.29 |
0.32 |
0.46 |
3.30 |
34 |
10 |
1 x 5.00 |
19/0.57 |
2.87 |
0.35 |
0.50 |
4.00 |
53 |
8* |
1 x 8.00 |
49/0.46 |
4.06 |
0.39 |
0.55 |
4.90 |
85 |
*for SAE J1128 Applications only
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
|
